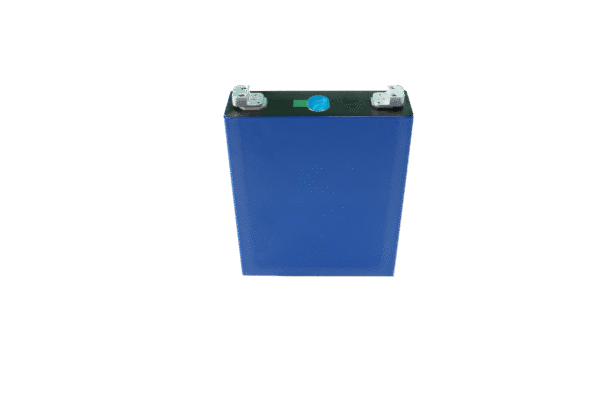

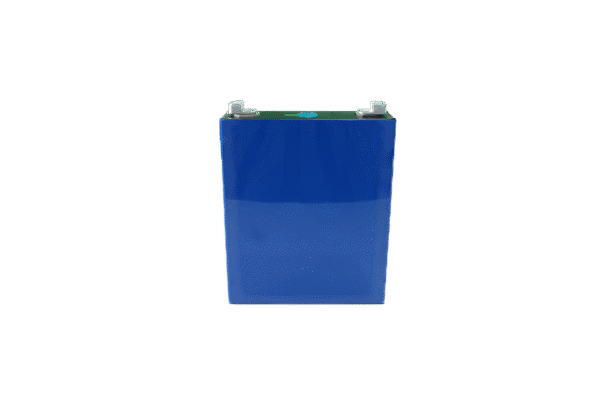

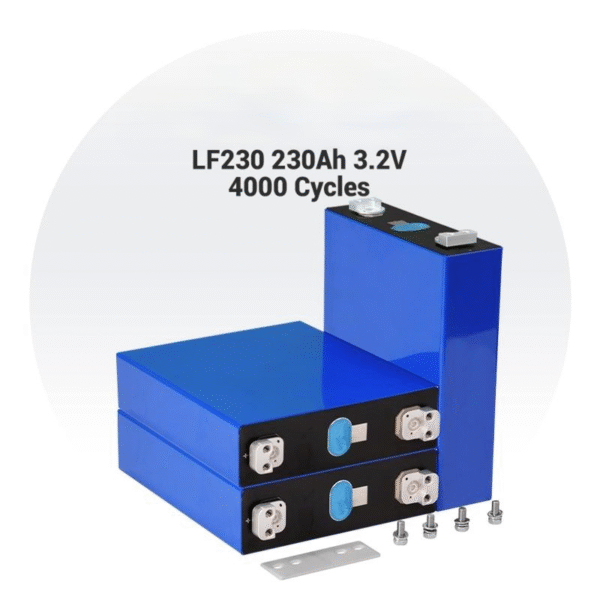

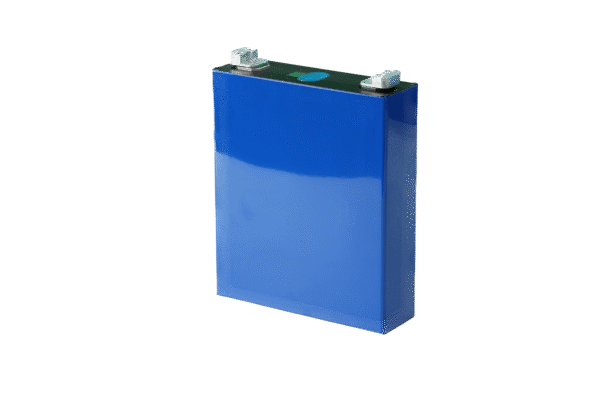

Eve 3.2V LF230 LiFePO4 Grade A (M6 Terminal and Accessories)

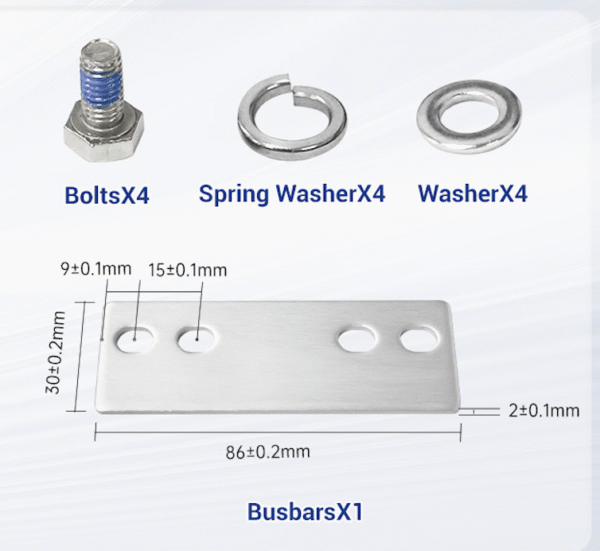

Grade A Eve LF230, 230AH LiFePO4 4000 Cycles Prismatic Cell with M6 Double Hole Terminal and Accessories
| Model | LF230 |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 230Ah |
| Initial IR | ≤0.25mΩ |
| Weight(g） | 4140±124 |
| Width*Thickness*Height(mm) | 173.9*53.8*207.2 |
| Standard charge/Discharge current | 115A/115A |
| Nominal Cycles(times) | 4000 |
| Charging Temperature | -10～65℃ |
| Discharging Temperature | -35~65 ℃ |

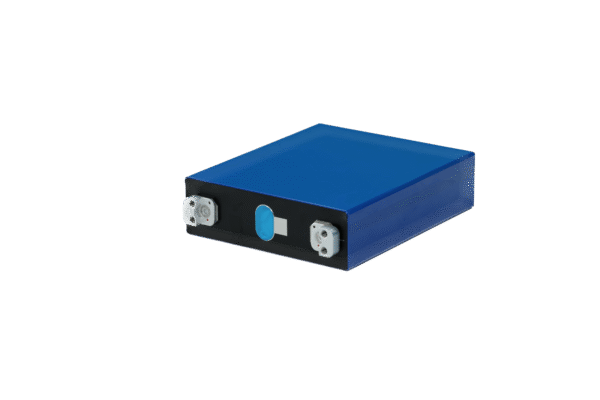

Grade A Eve LF230, 230AH LiFePO4 4000 Cycles Prismatic Cell with M6 Laser Welding Version
Nominal Capacity(Ah):230
Nominal Voltage(V): 3.2
Nominal Cycles(times): 4000
Weight(g):4140±124
Size(mm):173.9*53.8*207.2
Charge/Discharge multiplier:0.5C/0.5C(Max 3C)
Application Scenario:Excavators,Heavy Trucks,Forklifts,Passenger Cars
